The IMO Tier III modular vessel
Designed to meet international environmental standards
Overview of the IMO Tier III Vessel: Multiconfiguration. High-performance. Sustainable.

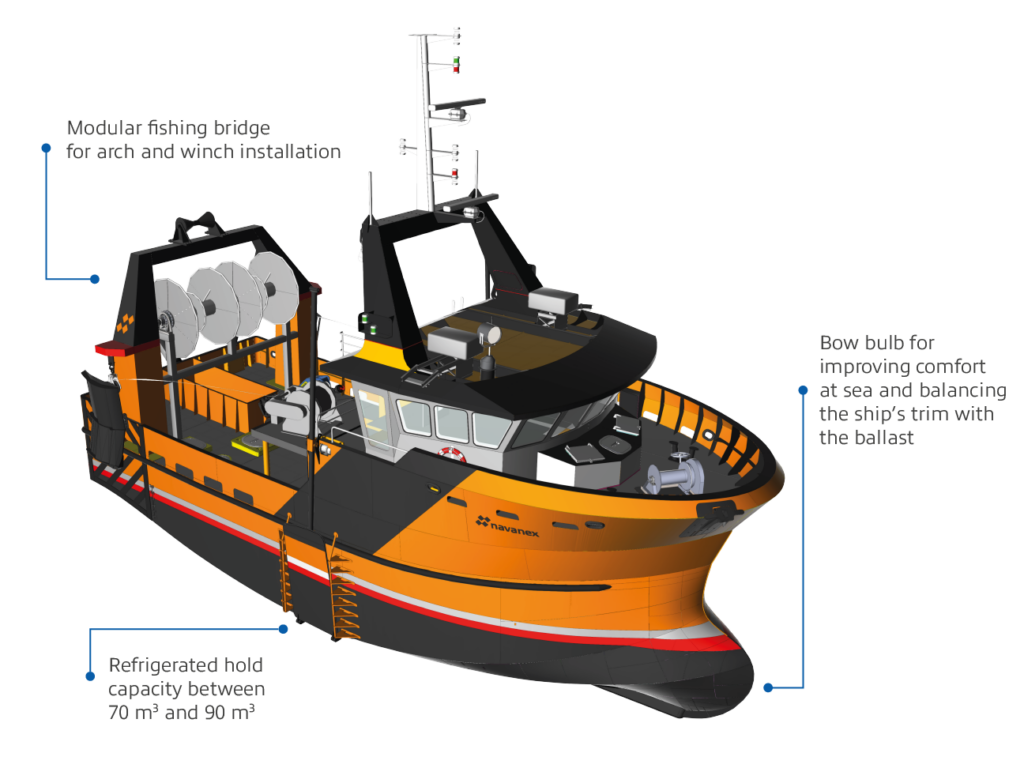

This vessel was thoughtfully designed to support both crab fishing and trawling operations. With a 24-foot beam and a gross tonnage under 150 GT, it features a refined hull form. Its bulb, equipped with a ballast tank, allows trim adjustment and ensures excellent longitudinal stability.
Configurable to 70′, this model is equipped with an IMO Tier III engine, ensuring full compliance with international environmental standards and supporting sustainable fishing.
What is an IMO Tier III vessel?
An IMO Tier III vessel must be equipped with an engine with a catalyst system to reduce environmentally harmful NOx emissions.
The practicality of a modular vessel
To better respond to market demand, our experts design vessels that can be easily reconfigured to meet diverse requirements. This model can be adjusted to 70′ and remain under 150 tons.
Designed for sustainable fishing
In response to climate change and changing biomass in Canadian waters, designing vessels adapted to different fisheries is essential. With this in mind, this vessel’s fishing deck can be configured to allow for the inclusion of a trawl net.
The importance of a quality catch
Ensuring the freshness of catches to maintain optimal quality is a top priority for us, and we communicate this to our clients throughout the design process.
This model can therefore be extended up to 70 feet while remaining under the 150 gross ton threshold.
Function: Coastal fishing vessel
Classification: Transport Canada – Near Coastal Voyage, Class 1
Construction: Steel/Aluminum
Speed: 10 knots
Overall length: 19.81 m (65′) to 21.34 m (70′)
Overall width: 7.31 m (24′)
Gross tonnage: Less than 150 tons
Draft: 3.8 m (13′ 1″)
Engine: IMO Tier III 750 HP, 1800 rpm
Diesel tank capacity: 23,052 L
Service tank: Fresh water 7,900 L, DEF 1,800 L, sanitary 450 L
Ballast tank: 7,600 L

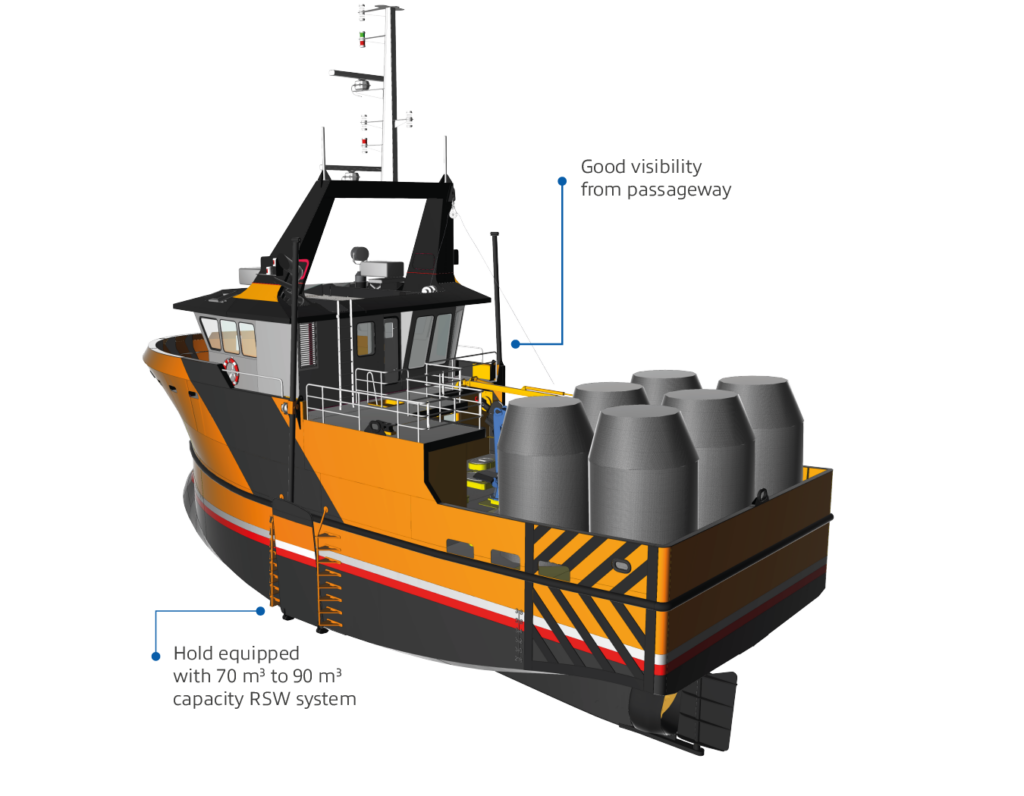

Hold capacity: 70 m3 to 90 m3
Ⓓ – NAVANEX INC. – Registered Industrial Design, Boat Stabilizer
A sustainable fishing vessel designed by Navanex!
